Features and Benefits

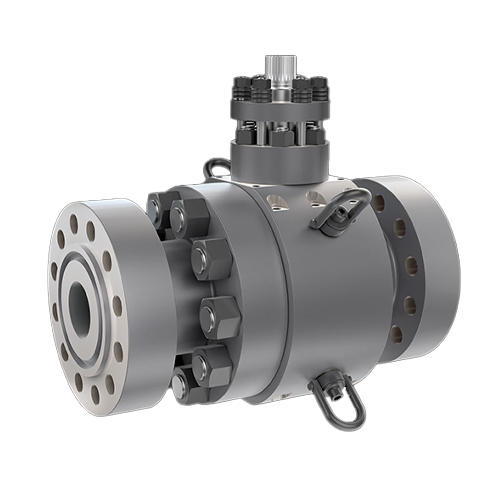

- Reliable Sealing – The ball valve features metal-seated, hard-faced seat rings and spring components that ensure a continuous and secure seal.
- Easy Maintenance – The stem and drive train can be replaced without needing to fully disassemble the valve, simplifying maintenance.
- Extended Durability – Made from corrosion- and erosion-resistant materials, with thermally sprayed coatings on the ball, seat rings, and springs to enhance longevity.
- Superior Stem Strength – The one-piece solid stem shaft is designed to withstand up to 200% of the operating pressure, providing exceptional durability.
Specification
Standards: API 608, ASME B16.34, ASME B16.10, API 598; ANSI Cl FCI 70.1 Class V & VI, API 607, ISO 158481-1, API 641, SIL, PED
Pressure Class Range: Class 150, 300, 600, 900, 1500, 2500
For Class 4500, please consult factory
Temperature: -29°C to 538°C (-50°F to 1,000°F)
Consult factory for temperatures above 538°C/1000°F
Size Range: NPS 1/2 to 36
Materials: Carbon Steel A105/A350 Grade LF2 / Stainless Steel A-182 F316/A182 F347H / Titanium / Duplex F51 / Inconel / Hastelloy
Other materials available on request, please consult factory.
Configuration
- Flow Direction Options – Available in uni-directional, bi-directional with preferred pressure direction, or bi-directional (upon request) configurations.
- Purge System Innovation – The unique purge system prevents valve lock-up, significantly reducing the costs of purging valves in severe service conditions.
- Custom Coatings – HVOF and Spray & Fused coatings offer tailored solutions, leveraging our in-house coating and automated lapping capabilities for enhanced performance.
Application Industries
Power
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
Chemicals
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Petrochemicals
Oil & Gas
- Upstream Exploration & Production
General Industries
- Mining
- Hydrogen
