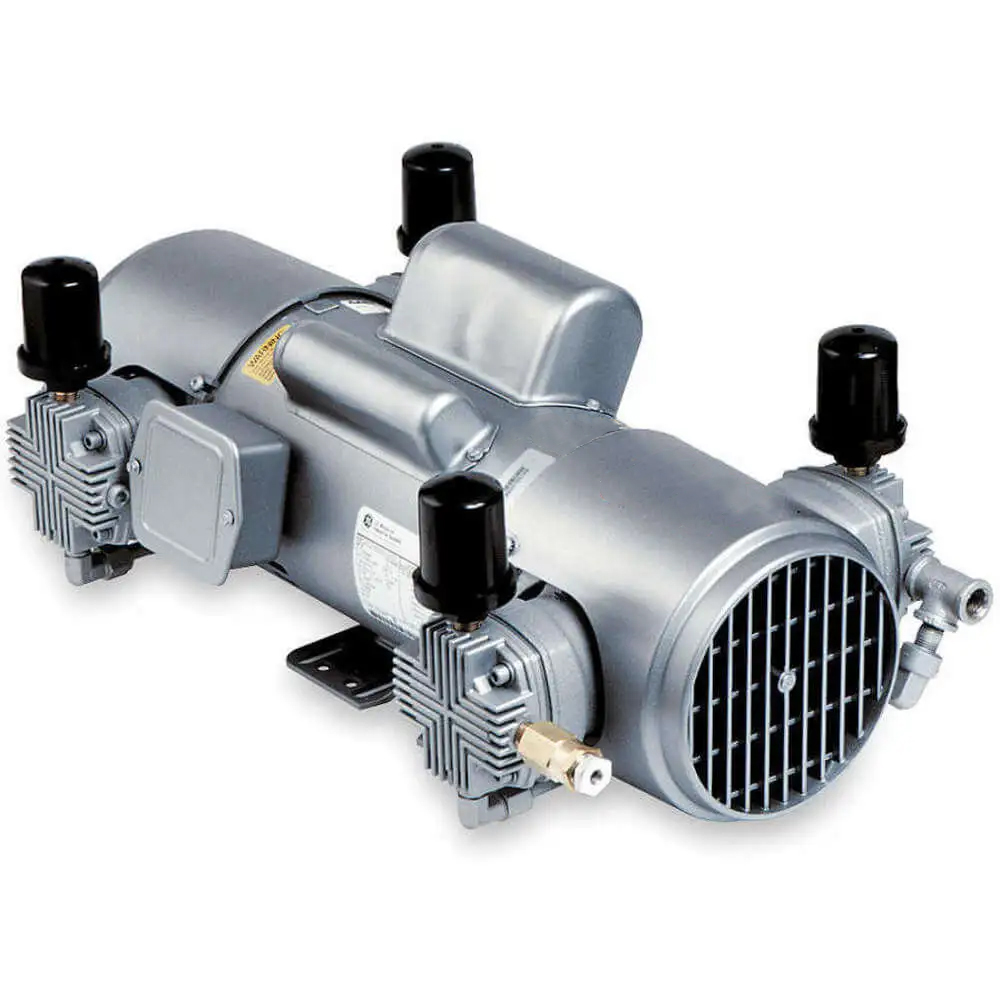

2HP Piston Air Compressor 115/230V, 1PH - Model 8HDM-19-M850X

2HP Piston Air Compressor 115/230V, 1PH – Model 8HDM-19-M850X

Experience reliable and efficient performance with this 2HP piston air compressor, designed for both 115V and 230V, 1-phase power systems. The Model 8HDM-19-M850X is ideal for a variety of industrial and commercial applications, providing consistent air compression for tools, equipment, and machinery. Its robust construction ensures long-lasting durability, while its versatile voltage compatibility makes it suitable for diverse operational needs. Perfect for environments where reliable, continuous airflow is required.

分类：

Specification

Item Piston Air Compressor
Cylinder Material  Aluminium
Design Rocking Piston
Finish Gray Paint
Free Air Cfm @ 0 Psi 11
Free Air Cfm @ 100 Psi 7
Free Air Cfm @ 20 Psi 9.9
Free Air Cfm @ 40 Psi 9
Free Air Cfm @ 50 Psi 8.5
Full Load Amps 24/12
Hp 2
Hz 60
Inlet Size 3/8″ NPT
Lubrication Type Oil-Less
Max. Psi Cont./int. 100/100
Motor Type Shaded Pole
Number Of Cylinders 4
Outlet Size 3/8″ NPT
Overall Height 8.5″
Overall Length 21.5″
Overall Width 12.25″
Phase 1
Rpm 1725
Sound Rating 63 dBA @ 60 psi
Temp. Range 32 Degrees to 104 Degrees F
Thermal Protection Automatic
Valve Corrosion Resistant Sandwich
Voltage 115/230 VAC



Voltage

115/230 VAC
Outlet Size

3/8″ NPT
Temp. Range

32 Degrees to 104 Degrees F
Phase

1 PH
