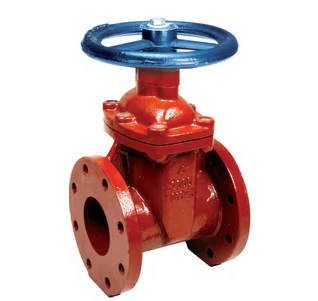

Marine Valve12 in. Flanged Ductile Iron Gate Valve with Handwheel
Product Details
- Non-rising stem design
- Ductile iron gate valves offer higher pressure tolerance and are lighter compared to cast iron models
- Valves feature fusion-bonded epoxy coating on the housings
- Stainless steel stem, bonnet, and bolts for enhanced durability
- Resilient wedge with Buna-N encapsulation for reliable performance
Specification
| ANSI Specifications |
ANSI B16.1 Class 125 |
NSF Certified |
No |
| ASTM Specifications |
ASTM A-536 65/45/12 |
Type |
M200WD16 |
| AWWA Specifications |
AWWA C-509, AWWA C-515 |
UL Listed |
No |
| Coating |
Epoxy |
Valve Body Style |
1 piece |
| End Connection 1 |
Flanged |
Valve Disc Material |
Ductile Iron |
| End Connection 2 |
Flanged |
Valve Operator |
Handwheel |
| End Connections |
Flanged |
Valve Port Opening |
Full Port |
| FM Approved |
No |
Valve Seat Material |
Buna-N |
| High Pressure |
250 |
Valve Size |
12 in |
| Length |
14 in |
Valve Stem |
Non-rising |
